Electromagnetic Compatibility Testing (EMC): Ensuring Smooth Operation of Devices
Electromagnetic Compatibility Testing (EMC) refers to the ability of devices or systems to operate in their electromagnetic environment in compliance with specified requirements and without causing unacceptable electromagnetic interference to surrounding equipment. EMC design and testing are complementary processes, with the quality of EMC design validated through EMC testing.
Sound EMC design is the cornerstone of ensuring proper functioning of products. It is crucial to conduct EMC compatibility prediction and assessment throughout the product design and development process. This helps in early detection of potential electromagnetic interference issues and adoption of necessary suppression and protection measures to ensure electromagnetic compatibility of systems. Failure to address compatibility issues until product finalization or system completion can result in significant human and financial costs for design modifications or remedial measures, often leading to operational challenges for the system.
Therefore, comprehensive EMC design and testing are essential to ensure stable operation of products in various electromagnetic environments, avoiding unnecessary troubles and cost investments later on. EMC testing is not only an important step in the product development process but also a critical aspect in guaranteeing product quality and user experience.
Open Area Test Sites (OATS), Semi-Anechoic Chambers, and Shielded Rooms: Three Primary Testing Environments for Electromagnetic Radiation
In Electromagnetic Compatibility (EMC) testing, Open Area Test Sites (OATS), Semi-Anechoic Chambers, and Shielded Rooms are commonly used testing environments, all capable of simulating the propagation characteristics of electromagnetic waves in free space.
• OATS reduces external electromagnetic wave interference on test signals and minimizes reflection through electromagnetic wave absorbing materials, making it suitable for emission, sensitivity, and immunity testing. With a shielding effectiveness of 80dB to 140dB, OATS can effectively disregard external environmental interference, simulating conditions similar to free space. Compared to other testing environments, OATS experiences minimal external interference and is unaffected by weather conditions, albeit with higher costs and space limitations.
• Semi-Anechoic Chambers, similar to OATS, are shielded environments with a conductive ground plane but lack electromagnetic wave absorbing materials on the floor. While they simulate ideal open field conditions, reflections occur due to the ground plane, resulting in the reception of both direct and reflected signals.
• Open Areas provide a flat, unobstructed, and uniformly conductive surface, simulating an ideal open environment. However, limited space may result in phase differences between transmitting and receiving antennas. In emission testing, Open Areas are utilized similarly to Semi-Anechoic Chambers.
These three environments provide conditions consistent with free space propagation rules in electromagnetic radiation testing. Choosing the appropriate environment based on testing requirements and cost considerations is crucial.

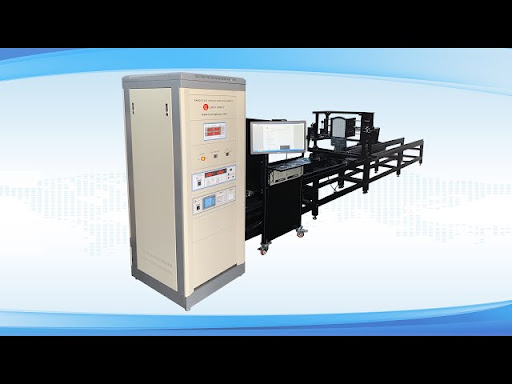

SDR-2000B_Magnetic Shielding Cabinet for EMI Testing
Shielded Rooms vs. Anechoic Chambers: Key Differences in EMC Testing Environments
In conducting Electromagnetic Compatibility (EMC) testing, Shielded Rooms and Anechoic Chambers are two commonly used testing environments, each with distinct differences and applications.
• Shielded Rooms are simple enclosed spaces typically made of metal, primarily designed to block external radio signals, thereby reducing electromagnetic interference on internal devices. In simple terms, Shielded Rooms prevent electromagnetic waves from escaping and external electromagnetic waves from entering. However, electromagnetic waves inside the Shielded Room reflect and interfere on the internal walls, potentially affecting test results.
• Anechoic Chambers, an improvement over Shielded Rooms, feature walls covered with absorbing materials to simulate an open field environment. These absorbing materials effectively absorb electromagnetic waves inside the chamber, reducing or eliminating reflection and interference effects. Consequently, Anechoic Chambers incur higher costs primarily due to the installation of these absorbing materials. As such, Anechoic Chambers are better suited for testing scenarios requiring simulation of open field conditions, such as radiation emission interference from test samples. Depending on the type and effectiveness of the covering materials, Anechoic Chambers can be classified as Full Anechoic Chambers or Semi-Anechoic Chambers.
In EMC testing, selecting the appropriate testing environment is critical, depending on the frequency range being tested and specific testing requirements. For tests such as conducted emissions, electrostatic discharge, surge testing, and lightning testing, Shielded Rooms are suitable as they mainly involve interference on power lines. However, for tests involving spatial radiation and spatial interference, testing in Anechoic Chambers is necessary to simulate open field conditions, ensuring the accuracy and reliability of test results.
EMC Anechoic Chambers: Ensuring Precision in Testing Environments
In Electromagnetic Compatibility (EMC) testing, EMC Anechoic Chambers play a crucial role in ensuring the precision of test results. Due to the stringent requirements of test projects, particularly in radiation emission and immunity testing, selecting the appropriate testing environment is paramount.
Challenges and Limitations of Open Area Test Sites
While Open Area Test Sites are vital testing environments, their construction costs are high, and they are often located far from urban areas, leading to inconvenience in usage. Additionally, if situated in urban areas, they may be susceptible to background noise interference, affecting the accuracy of test results.
Limitations of Shielded Rooms and Improvements
Although Shielded Rooms are used as alternatives to Open Area Test Sites, they suffer from resonance frequency issues. When the radiation frequency of the test equipment induces resonance in the Shielded Room, test errors can reach up to 20 to 30dB. To address this issue, it is necessary to install absorbing materials on the walls and ceiling of the Shielded Room to weaken reflections, thus simulating the testing environment of an open field.
Structure and Composition of EMC Anechoic Chambers
EMC Anechoic Chambers typically consist of RF shielding rooms, absorbing materials, power supplies, antennas, turntables, and other components. The RF shielding room ensures that tests are not affected by external interference, while absorbing materials ensure the absorption characteristics of the chamber. Antennas and turntables ensure that tests are conducted according to standard requirements.
Significance of the Flooring
The flooring of the chamber is crucial as it serves as the primary reflecting surface for electromagnetic waves. It should be continuous, flat, and free from irregularities, with no gaps exceeding 1/10 of the minimum operating wavelength to maintain the continuity of conductivity.
Arrangement of Control Rooms
To avoid test errors, operators and test control equipment should not be located within the test area. Typically, operators and test control equipment are placed in control rooms. Furthermore, if high-power amplification equipment is present, an amplification room should be established to prevent interference with the surrounding environment.
Independence of Power Supply Systems
The chamber and control room should have independent power supply systems, using different phases of power sources and passing through respective filters to prevent interference from the control room entering the chamber via power lines.
